Underground Potash Belt Conveyor

  • Underground Potash Belt Conveyor
  • Underground Potash Belt Conveyor
  • Underground Potash Belt Conveyor

Underground Potash Belt Conveyor

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,EXW,FCA
    Delivery Time: 45 Days
    Packaging: Seaworthy Packing
    Transportation: Ocean,Land
    Port: Shanghai Port

Basic Info

Model No.: QBC

Product Description

Customized Design and Build a Belt Conveyor for

Project:Underground Potash Conveyor

Material Handled:Potash

Throughput: 500 tph

Conveyor Length: 1.2km

Location:Dan Khun Thot, Thailand

Equipment Supplied:

  • 1.2km Underground development conveyor to handle spoil from Road header
  • To be converted to production conveyor on completion of tunnelling works
  • Electricals (General electrical, MCC, instrumentation & control logic)

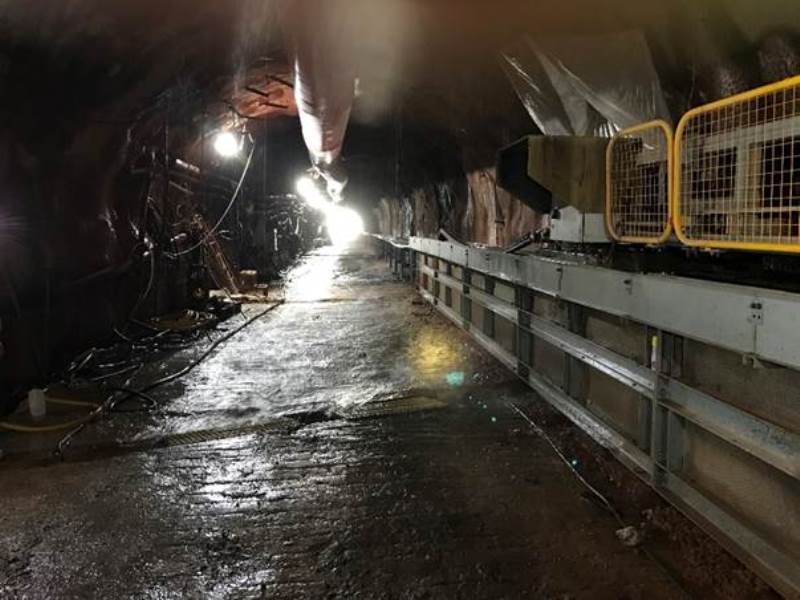

Site Photo

Underground Potash Conveyor1




Product General Description

Belt conveyors are the most economical method of transporting bulk materials over both short and long distances. Belt conveyors are ideal for conveying bulk materials of large lump size since the bulk materials stay stationary on the belt. The layout of your plant can be simplified and made more efficient with the use of belt conveyors.

QUANTUM designs and manufactures Belt Conveyors to meet the needs of many industries, such as Chemical, Minerals Processing, Food, Wood Products and Wastewater Treatment.

QUANTUM Modular Belt Conveyors are designed in fixed section lengths and belt widths to reduce delivery lead times and installation times.


Standard modules are in 3m sections, with a shorter, custom module to ensure the conveyor suits your plant layout. Head and tail sections are designed to cover a wide range of throughputs for each belt size. They can be used in horizontal and inclined applications – support legs can be positioned as required. All conveyors can include covers.

A typical application is for narrow belt width, fully enclosed modular sample and dust return conveyors. All of our conveyors can be designed for Modularisation and our Standard belt widths include 600mm, 450mm and 750mm.


Modular Belt Conveyor Typical Design



Product Specification

Our Quantum Standard Size Range

MODEL

BELT WIDTH

CONVEYOR LENGTH (m)

MAX CAPACITY

kW

BELT SPEED

(mm)

(m/second)

QBC350-07

350

7

30

1.0 - 1.5

0.5

QBC350-13

13

QBC350-19

19

QBC350-25

25

QBC350-37

37

QBC350-50

50

QBC450-07

450

7

50

1.5 - 3.0

0.5

QBC450-13

13

QBC450-19

19

QBC450-25

25

QBC450-37

37

QBC450-50

50

QBC600-07

600

7

100

2.2 - 4.0

0.5

QBC600-13

13

QBC600-19

19

QBC600-25

25

QBC600-37

37

QBC600-50

50


Design Highlights

Our Belt Conveyors are custom designed for your application based on proven industry standards. Bulk material characteristics, feed-rate, loading requirements and temperature are some of the parameters that we consider when designing belt conveyors.


Our Advantages:

  • Standard Module Structure - To ensure the conveyor suits your plant layout
  • Abrasion Resistant Belting - To Reduce Wear and Increase Life
  • Dust-Tight Construction - To Eliminate Dust Emissions
  • Heavy-Duty Idlers with Anti-Friction Bearings - To Increase Idler Life and Reduce Horsepower Requirements
  • High Torque Drive Units - To Power Through Upset Conditions


Typical Equipment Photos

Modular Belt Conveyors

Quantum Conveying Systems Yangzhou Co.,Ltd.



Quantum Conveying Systems is specialized in suppying conveying solutions and conveyor components manufacturing, with a combined experience of 40 years in bulk material handling. Quantum is born to be your ideal partner for the most cost-effective solutions in material conveying, with unique advantage of Australian outstanding design and competitive Chinese fabrication cost.


We design and make a range of reliable equipment that comes with an extended warranty on all parts and can be designed, installed and commissioned at any site across the world.

Our standard range of bulk materials handling and conveyor components include:

  • Drag Chain Conveyor
  • Bucket Elevators
  • Screw Conveyors
  • Modular Belt Conveyors
  • Pulley and Idlers
  • Lump Breakers & Pin Crushers
  • Dilute and Dense Pneumatic Conveyors
  • Silos & Storage

Our equipment solution and components are widely applied into following industries, but not limited to


  • Mining and Resources
  • Chemical and Industrial
  • Cement and Quarrying
  • Food and Beverage
  • Waste and Recycling



QUANTUM DESIGN

Our equipment is designed to be trouble free and low maintenance whilst also ensuring that it can handle the toughest of materials. Power needs, shafts and bearings are all designed for surge capacities with high service factors ensuring maximum performance and life and minimum downtime.

Our equipment has been successfully installed in a wide range of applications and capacities, handling a wide range of throughput capacities, conveying at high temperatures, and handling materials that are high wear, abrasive, large lumpy, sticky non-flowing, as well as free flowing powders and granules.

Whether your application requires a heavy-duty high capacity machine or an industrial process machine for your factory, QUANTUM has the experience to supply the right equipment for your application: either from our standard ranges, or specifically designed for more specialized applications.


QUANTUM WORKSHOP

Our Workshop, located in Yangzhou City, China, has covered area of 20,000 square meter, including pulley & Idler production line, steelwork fabrication area, assembly, FAT and painting area, equipped with the following main facilities:

Overhead Crane up to 32 Tons CNC plasma cutting machine

CNC Bending Machine CNC Rolling Machine

CNC plate Shearing Machine Milling & Boring Machine

Idler Production Line

Blasting and painting facilities

Transport including semi-trailers and flat-bed trucks
