High Quality Jaw Crusher, Stone Crusher, Mining Crusher Suppliers in China

Home > Products > Jaw Crusher > Shanghai DongMeng High Quality Jaw Crusher For Sale Stone Rock Crushing Machine Low Price Factory Manufacturer

Shanghai DongMeng High Quality Jaw Crusher For Sale Stone Rock Crushing Machine Low Price Factory Manufacturer

Product Description

  Product Description Como trituración primaria, la trituradora de mandíbula se usa normalmente para plantas de piedras y arena artificial manual,y de trituración de minerales. Y es ampliamente utilizado en minería, metalurgia, construcción, carreteras, ferrocarriles, conservación de agua e industrias químicas, etc.   Related products   Jaw crusher Application of used small Jaw Crusher for sale
The Dongmeng Mining machinery jaw Crusher is used in primary crushing for stones and bulk materials .It processes various kinds of ore with compression strength not more than 320mp. It has been widely applied in area of is widely used in mining, quarry,metallurgy, building, highway, railway, construction wastes processing,water conservancy and cement production, etc. .The jaw crusher is divided into the coarse jaw crusher and the fine jaw crusher, i.e. PE series and PEX series for high capacity jaw crusher for granite for sale   Characteristics and Advantage of  used small jaw crusher for sale
1.High reduction ratio and even final particles 2.Simple structure and easy to be maintained 3. Easy replacement of wearing and Spare Parts
4.Reliable operation and long service life
5.Convenient maintenance and low maintainance charges 6.Wide ranges of products series for high capacity jaw crusher for granite for sale     Working principle of used small jaw crusher for sale
The motor drives the eccentric shaft to rotate by the V-belt & the slot wheel, then the movable jaw moves back and forth to break the materials in the crushing cavity which is composed of fixed jaw plate & movable jaw plate and side guard plate. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be broken to reach the crushing target. When the movable jaw is moving down, the angle between the fixed jaw and movable jaw becomes smaller .the end products slide from the discharge opening at the bottom of the high capacity jaw crusher for granite for sale   Technical Parameters

Model

feed opening(mm*mm)

max feed size(mm)

capacity(t/h)

shaft speed(r/min)

motor power(kw)

weight(t)

(mm)

PE-250*400

250*400

210

5-20

300

15

2.8

1450*1315*1296

PE-400*600

400*600

340

16-65

275

30

6.5

1565*1732*1586

PE-500*750

500*750

425

45-100

275

55

10.1

1890*1916*1870

PE-600*900

600*900

500

50-120

250

55-75

15.5

2305*1840*2260

PE-750*1060

750*1060

630

52-180

250

110

28

2450*2472*2840

PE-900*1200

900*1200

750

140-260

200

110

50

3335*3182*3025

PE-1000*1200

1000*1200

850

160-300

200

110

51

3335*3182*3025

PE-1200*1500

1200*1500

1020

300-600

180

160

100.9

4200*3732*3025

PEX-250*1000

250*1000

210

16-52

330

30-37

6.5

1530*1992*1380

PEX-250*1200

250*1200

210

20-60

330

37

7.7

1900*2192*1430

PEX-300*1300

300*1300

250

20-90

330

55

11

1900*2192*1430

Note: This specification is just reference; including Motor,any changes are subject to the Jaw Crusher products  high capacity jaw crusher for granite for sale

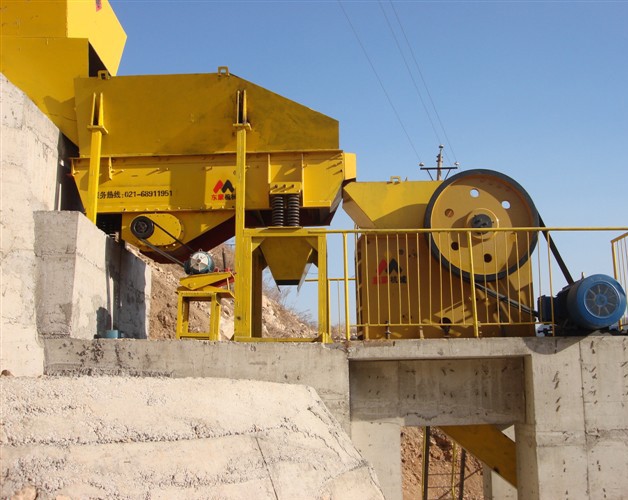

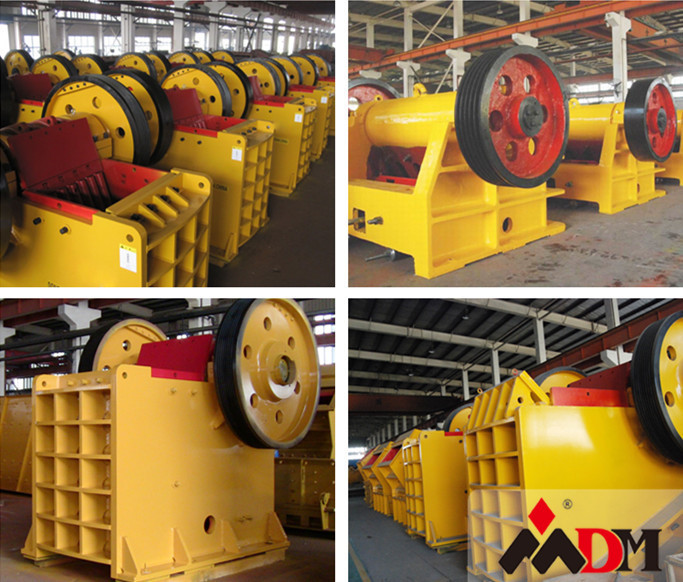

Real photos for used small jaw crusher for sale

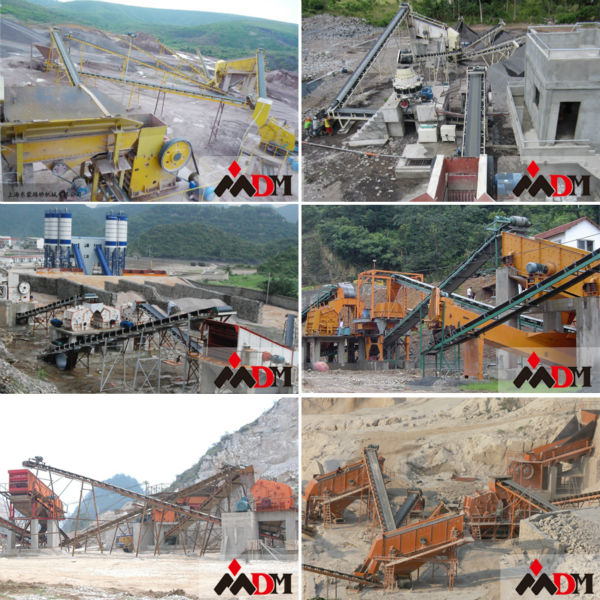

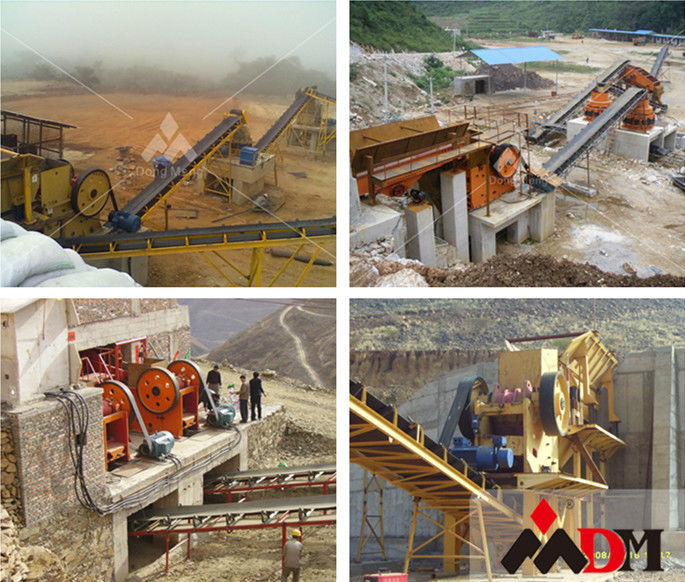

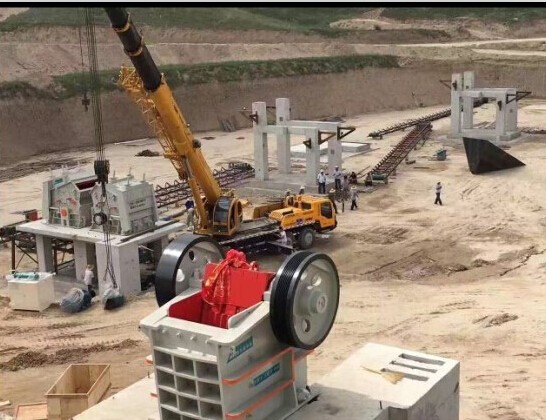

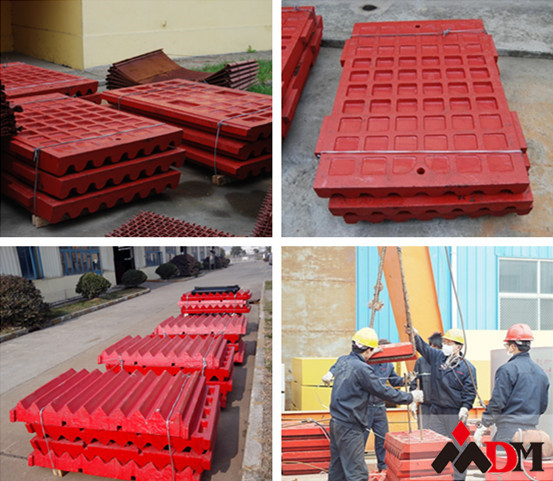

      spare parts for used small jaw crusher for sale More Jaw  crusher working case high capacity jaw crusher for granite for sale

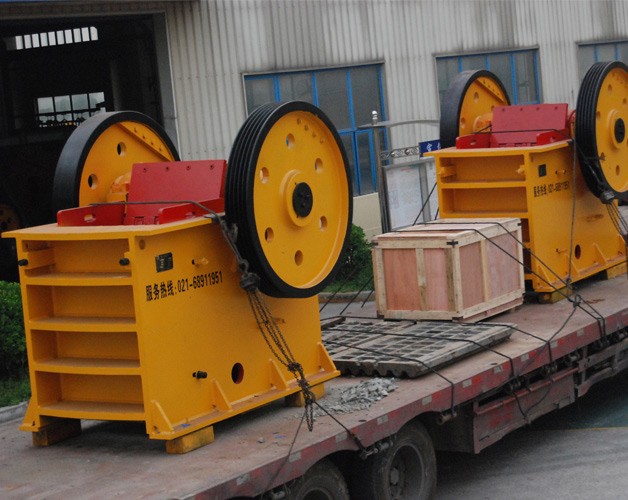

  Packaging & Shipping Delivery for used small jaw crusher for sale
In bulk and roll-roll shipment   Our Services Service for used small jaw crusher for sale
1)  Pre-sale service:Freely provide project designing, process designing, choosing suitable equipment for you. 2)  Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export  for high capacity jaw crusher for granite for sale
3)  After-sales service: We sent engineer to the scene to guide installation, debugging and training operators. Service supervision  for used small jaw crusher for sale

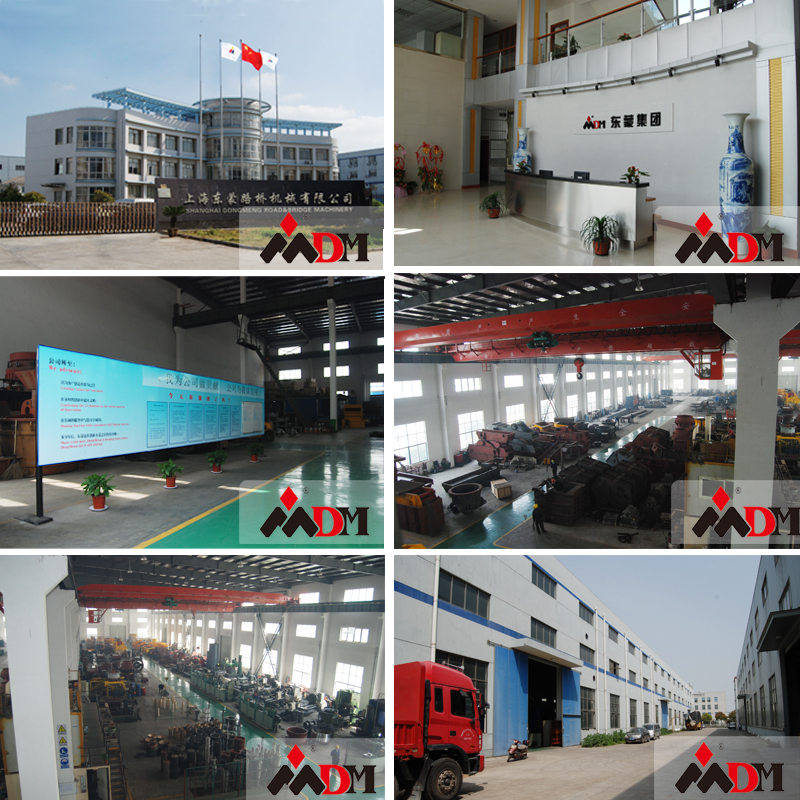

Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff , please feel free to contact us by dialing 24 hours hot line;:0086-21-68911957 Company Information Shanghai DongMeng Road&Bridge Machinery Co., Ltd. Is a leading professional manufacturer of crushing &screening machinery in China. Shanghai Dongmeng set machinery design, development, production, sales, after-sales service as one. We have more than 200 workers, 30 senior technical staff, with factory area of more than 20,000 square meters.     FAQ Q:Instalation  for used small jaw crusher for sale
A:At the client’s request, DongMeng can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. Travel and accommodation costs, plus US$50 per day per man to be met by the client.   Q:Payment  for used small jaw crusher for sale                                                                                                                                              A:30% by TT as deposit on signing the contract, 70% by as final payment of balance after the client’s satisfactory inspection of the equipment prior to the goods leaving the DongMeng factory.
Q: What about Warranty? what will we do if the machine is broken down
A: The warranty period for all of DongMeng’s structural and mechanical equipment is one year. The warranty period for all electric motors is half one year. Wear parts are not covered by warranty unless the component part is found to be flawed.   Q: What should we need to do for if we want to get a best quotation
A: Hi, if you want us recommend a suitable type for you ,please let us know  as follows:
     1).the capacity (tons per hour )      2).output size      3).stone type
Q: What could you help me to do for the business ?
A: Many thanks for your trust , we can provide you with proposal chart for complete production lines , spot inspection and operator traning according to your demands and the conditions of applied spot , we can help you
choose the right equipments ,drilling rig ,loader ,trucks ,excavators and so on for high capacity jaw crusher for granite for sale   Q:What's your After sales Service
A:All equipment manufactured by DongMeng is of the highest standard and very rarely have our clients experienced any mechanical problems. Should any problems occur, our team of Engineers and Technicians will respond within12 hours of notice by the client.   Q:Delivery time for used small jaw crusher for sale
A:Standard delivery time for stationary crusher plant is 30 days from receipt of deposit.the Mobile Crusher Plant is 25 days,

Contact us if you need more details on used small jaw crusher for sale. We are ready to answer your questions on packaging, logistics, certification or any other aspects about used small jaw crusher for sale、jaw crusher price list. If these products fail to match your need, please contact us and we would like to provide relevant information.
