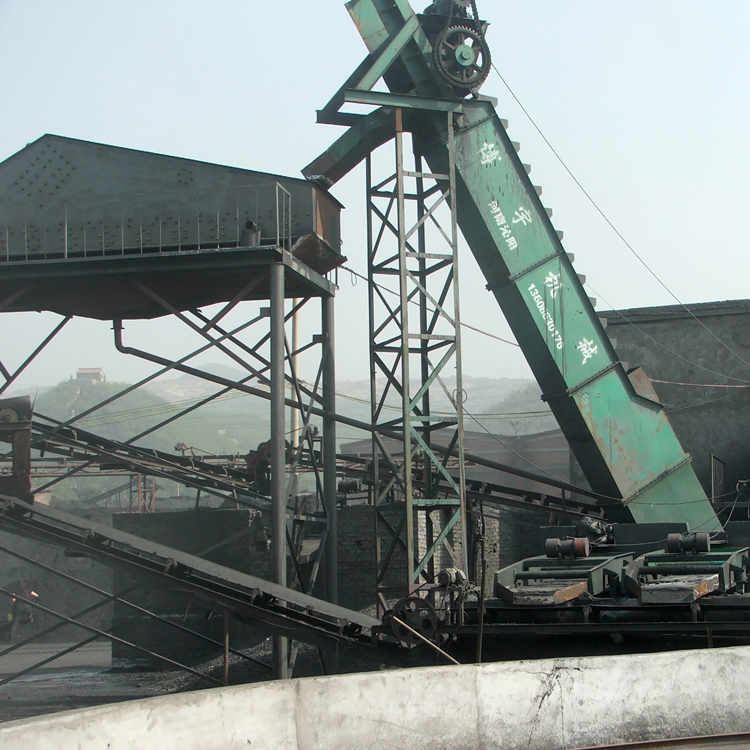

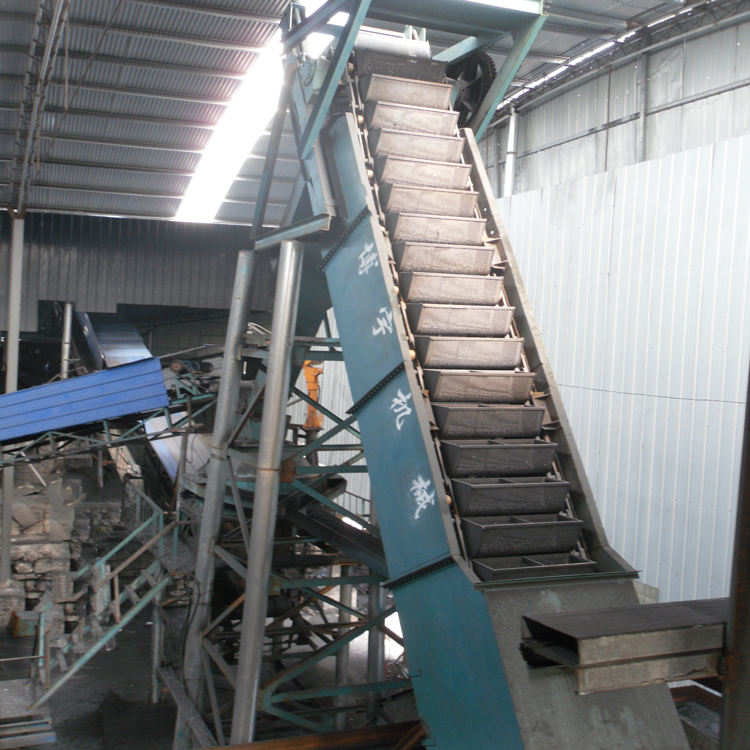

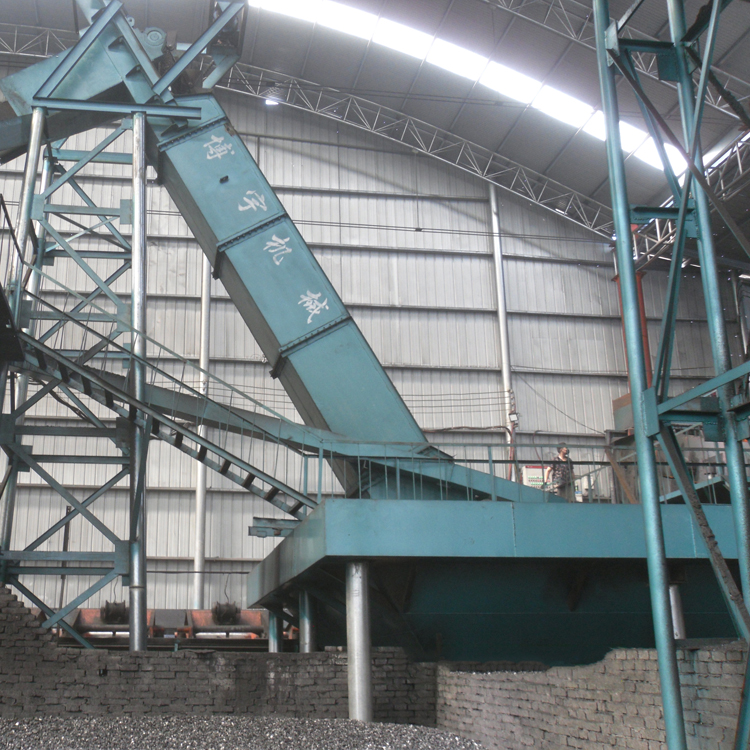

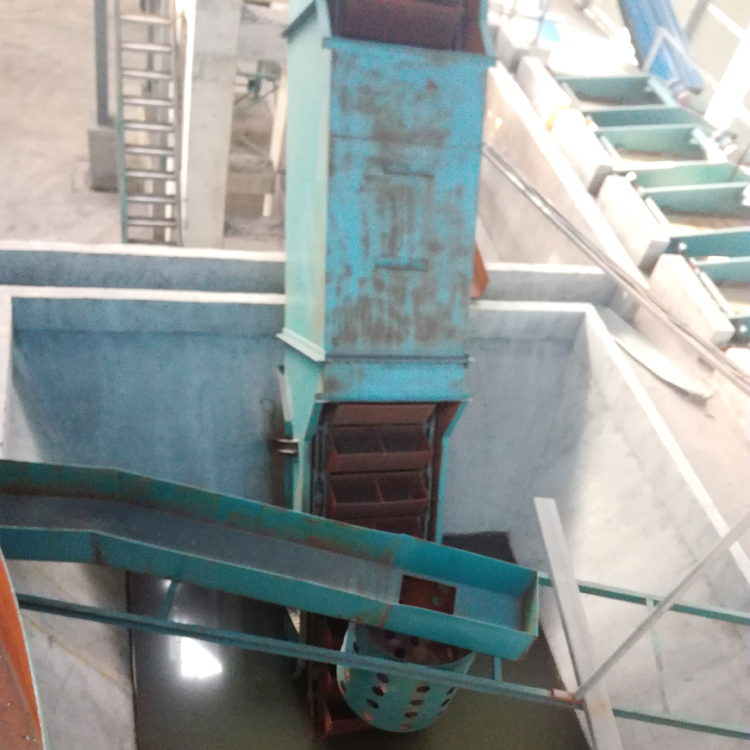

Bucket elevator for coal washing production line

#detail_decorate_root .magic-0{border-bottom-style:none;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#000;background-color:#59c7f9;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{text-align:center}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:99px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:117px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:85px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:88px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:93px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-13{vertical-align:top}#detail_decorate_root .magic-14{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-15{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-16{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-17{font-size:16px}#detail_decorate_root .magic-18{width:750px}#detail_decorate_root .magic-19{overflow:hidden;width:750px;height:568.3994528043776px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:750px;height:568.3994528043776px} Product Description Product Parameters

Model	Length (mm)	Transport material granularity	Dip angle(°)	Bucket pitch(mm)	Lifting ability(t/h)
L2532	9500	0—50	60	250	8.1—12.1
L3240	11360	0—50	60	320	15.9—23.9
L3240	13600	0—100	60—70	320	26.9—40.3
L4060	11400	0—50	60	400	31.8—47.6
L4060	12200	0—150	60	400	76—114
L4060	15000	0—50	60	400	53.6—80.4
L4080	13400	0—50	60	400	42.4—63.6
L40100	15000	0—60	60	400	53
L40100	16600	0—50	60	400	53—79.4
L40100	17400	0—50	60	400	79
L40100	17800	0—50	65	400	89—134
L50120	12750	0—50	60	500	79.2—200.4
L50120	19250	0—50	62	500	111—167
L50140	19250	0—130	60	500	184—276
L50140	19250	0—130	62	500	156—234

Recommend Products Company Profile Qinyang Tianze Boyu Machinery Co., Ltd. is a coal machine manufacturing enterprise integrating production and sales. Since its establishment, the company has adhered to the service philosophy of "integrity-based, customer first", internally strengthened management, externally refined services, strives for survival by quality, seeks development by reputation, actively creates and develops its own brand, and rapidly expands market share . The company has a group of professional and technical personnel, adopts advanced management mode, and constantly innovates and proactively according to the needs of different customers. It gradually standardizes and perfects the company's various work, and with warm service and rigorous attitude, it is used by users everywhere Leave a good reputation. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success. Product packaging

Contact us if you need more details on bucket elevator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Efficient bucket elevator for coal washing plant、Wholesale Quality Bucket Elevator. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Beneficiation Equipment
